基于AT32UC3A EVK1105设计的32位MCU开发技术

文章摘要：• Single 3.3V Power Supply or Dual 1.8V-3.3V Power Supply图1.AT32UC3A方框图32位AVR EVK1105评估板The 32-bit AVR EVK1105 is an evaluation kit for the AT32UC3A0512 which demonstrates Atmels state-of-the-art 32-bit AVR microcontroller in Hi-Fi audio decoding and streaming applications. The kit contains re

基于AT32UC3A EVK1105设计的32位MCU开发技术,标签：单片机开发,单片机原理,http://www.88dzw.com

• Single 3.3V Power Supply or Dual 1.8V-3.3V Power Supply

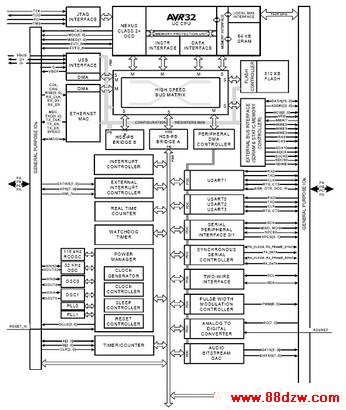

图1.AT32UC3A方框图

32位AVR EVK1105评估板

The 32-bit AVR EVK1105 is an evaluation kit for the AT32UC3A0512 which demonstrates Atmels state-of-the-art 32-bit AVR microcontroller in Hi-Fi audio decoding and streaming applications. The kit contains reference hardware and software for generic MP3 player docking stations.

图2.32位AVR EVK1105评估板外形图

32位AVR EVK1105评估板电路图和BOM:

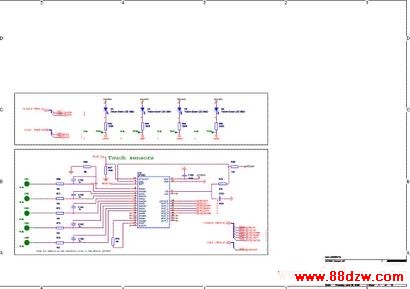

图3.32位AVR EVK1105评估板电路图(1)

www.88dzw.com

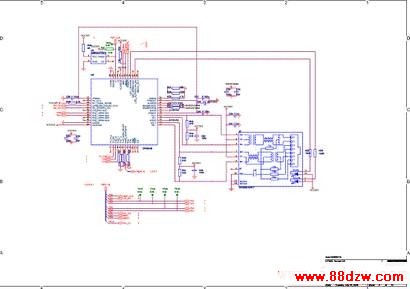

图4.32位AVR EVK1105评估板电路图(2)

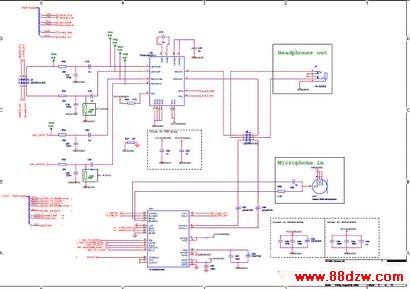

图5.32位AVR EVK1105评估板电路图(3)

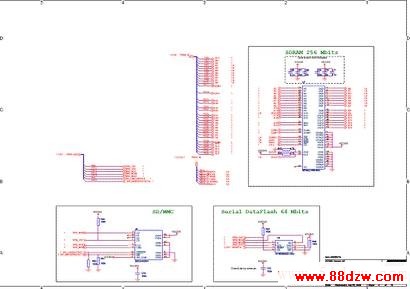

图6.32位AVR EVK1105评估板电路图(4)

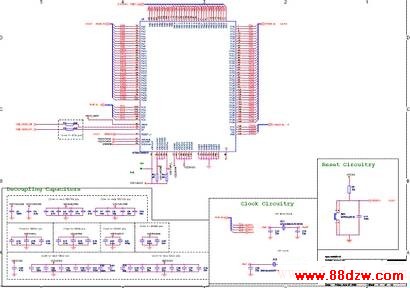

图7.32位AVR EVK1105评估板电路图(5)

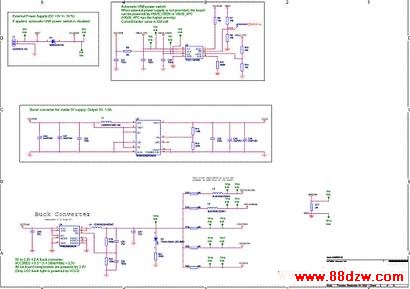

图8.32位AVR EVK1105评估板电路图(6)
