　　entity seq_gen is port(clk_seq : in std_logic； rst_seq : in std_logic; LCD_hs_out : out std_logic; lcd_dataen : out std_logic; lcd_vs_out : out std_logic; pix_clk : out std_logic ); end seq_gen; architecture rtl_seq_gen of seq_gen is signa

　　l lcd_hb : std_logic; signal lcd_hs : std_logic; signal lcd_vb : std_logic; signal lcd_vs : std_logic; signal clken_vcount : std_logic; begin hcount: block signal hcountreg :std_logic_vector(9 downto 0); signal hz_temp : std_logic; signal lcd_hz : std_logic; begin process (clk_seq,lcd_hz) begin if (lcd_hz = "1") then hcountreg <= (others =>"0"); elsif clk_seq"event and clk_seq = "1" then hcountreg <= hcountreg +1; end if; end process; lcd_hb <= "0" when hcountreg >=600 and hcount

　　reg < 650 else "1"; lcd_hs <="0" when hcountreg >=610 and hcountreg < 630 else "1"; hz_temp <= "1" when hcountreg = 650 else "0"; lcd_hz <=hz_temp or rst_seq;  end block hcount; diff : block signal inputrega : std_logic; signal inputregb : std_logic; begin process(clk_seq) begin if clk_seq"event and clk_seq="1" then inputregb <= inputrega; inputrega <= not lcd_hs; end if; end process; clken_vcount <= not inputregb and inputrega; end block diff; vcount : block signal vcountreg : std_logic_vector(9 downto 0); signal vz_temp : std_logic; signal lcd_vz : std_logic; begin process (clk_seq,lcd_vz) begin if(lcd_vz="1")then vcountreg <= (others => "0"); elsif clk_seq"event and clk_seq = "1" then if clken_vcount = "1" then vcountreg <= vcountreg +1; end if; end if; end process; lcd_vb <= "0" when vcountreg >=600 and vcountreg < 615 else "1"; lcd_vs <="0" when vcountreg >=607 and vcounreg < 610 else "1"; vz_temp <= "1" when vcountreg = 615 else "0"; lcd_vz <= vz_temp or rst_seq; end block vcount; pix_clk <=clk_seq; lcd_dataen <=lcd_hb and lcd_vb; lcd_hs_out <=lcd_hs; lcd_vs_out <=lcd_vs; end rtl_seq_gen; 这种用VHDL产生扫描时序的方法简单、易读，并且易于修改。在代码中只须修改一些时序参数就能产生任意时序的波形，具有很好的可重用性。

　　

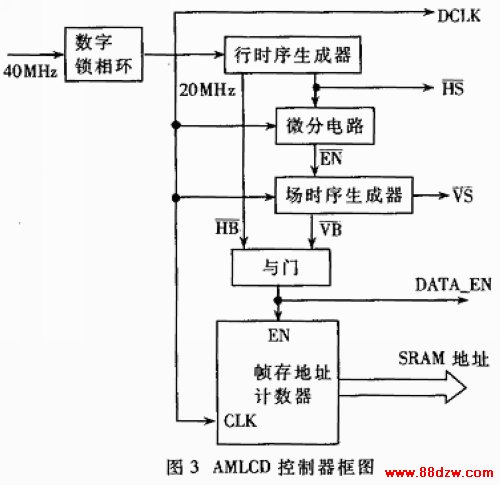

　　采用FPGA技术设计的AMLCD控制器，大大减少了电路板的尺寸，同时增加了系统可靠性和设计灵活性。这种用VHDL语言实现现行场扫描时序生成器的方法，具有简便。易读和可重用性强的特点。该AMLCD控制器已用Xilinx公司的SpartanII系列器件XC2S50实现，并在飞机座舱图形显示系统中实现应用。

　　（朱耀东 经亚枝 张焕春 ）
